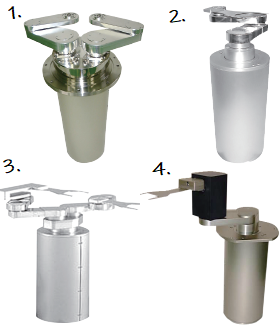

Hyulim: Wafer Transfer Robot

Weight: 70kg
Degree of Freedom: 4
Reach: 1090mm
Z Stroke: 50mm
Payload: 0.7kg (Including the hand)
Position Repeatability: ±0.1 mm
Cleanliness: Class 1 (0.1 μm/cf)

Product Description:
- High Speed Transfer
- Configuration optimized from high vacuum to low vacuum and N2 environment
- Dry bearing

Weight: 20kg
Degree of Freedom: 3
Reach: 510mm
Z Stroke: 300mm
Payload: 3kg (Including the hand)
Position Repeatability: ±0.1 mm
Cleanliness: Class 1 (0.1 μm/cf)

Weight: 27kg
Degree of Freedom: 4
Reach: 1020mm
Z Stroke: 300mm
Payload: 3kg per arm (Including the hand)
Position Repeatability: ±0.1 mm
Cleanliness: Class 1 (0.1 μm/cf)

Weight: 29kg
Degree of Freedom: 3 + 1
Reach: 510mm
Z Stroke: 300mm
Payload: 0.5kg (Including the hand)
Position Repeatability: ±0.1 mm
Cleanliness: Class 1 (0.1 μm/cf)

Product Description:
- High Speed Transfer
- Flexible customizing possible through modularization of standard products











Related Products:

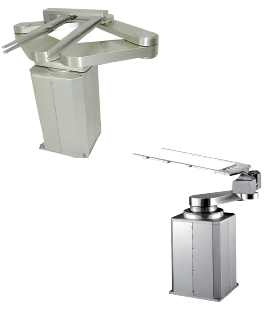

  • Hyulim Transfer Glass Robot
