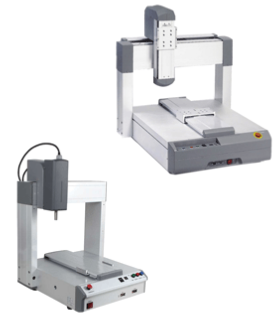

Hyulim: Desktop Robot

Moving Axes: 2~4
Speed (X, Y): 500~600 mm/s
Speed (Z): 250~320 mm/s
Speed (R): 720˚/s
Payload : Up to 15kg(Work) / 15kg(Tool)
Repeatability (X, Y, Z): ±0.01mm
Repeatability (R): ±0.02˚
Communication: RS232, Ethernet
Motor: 2 phase stepper motor

Special Functions:
- 3 dimensional palletizing, Pass & Turning motion
- Teaching points shift, I/O parallel processing
- R axis value compensation, Real time speed over ride

Moving Axes: 2~4
Speed (X, Y): 667 mm/s
Speed (Z): 333mm/s
Speed (R): 1800˚/s
Payload : Up to 20kg(Work) / 20kg(Tool)
Repeatability (X, Y, Z): ±0.005mm
Repeatability (R): ±0.02˚
Communication: RS232, Ethernet
Motor: AC servo motor

Special Functions:
- 3 dimensional palletizing, Pass & Turning motion
- Teaching points shift, I/O parallel processing
- R axis value compensation, Real time speed over ride

Product Description:
- Designed to combine high precision and accurate positioning functions into compact unit with high rigid structure
- Aluminum extruded material is employed on the base and gantry structure for all models enhance rigidity
- Minimize whole dimension by cable treatment into the Robot and save working space
- Large memory capacity

Do contact us if you need help in selection for your Desktop Robot

Related Products:

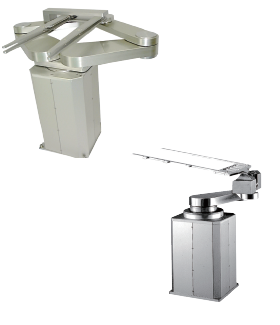

  • Hyulim Transfer Glass Robot

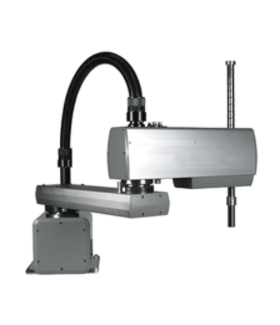

  • Hyulim SCARA DSA LNHS Series

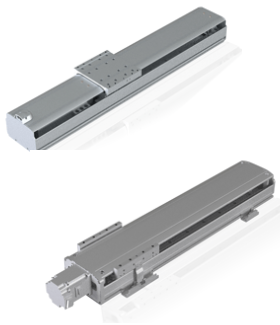

  • Hyulim Cartesian Robot
