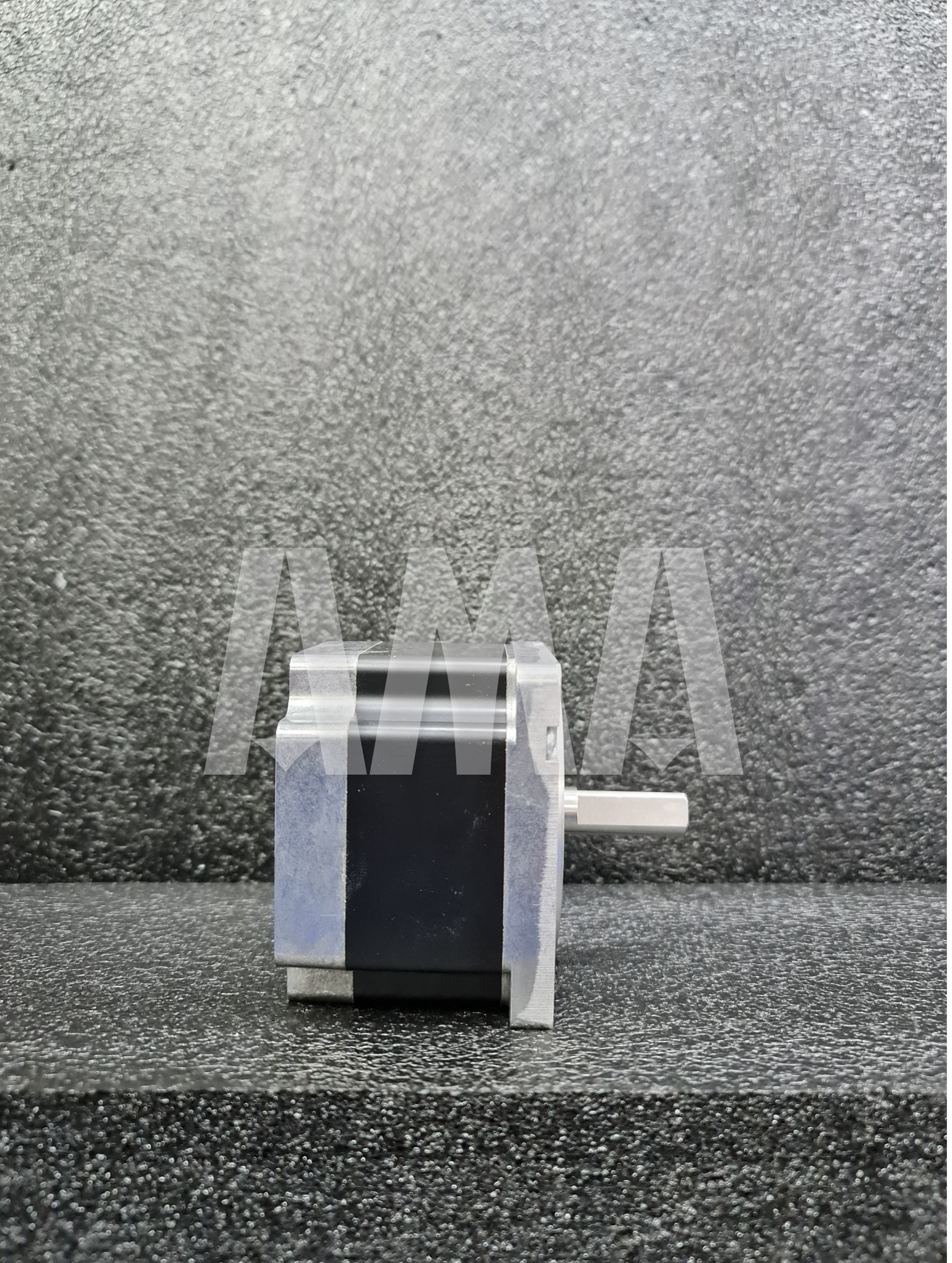

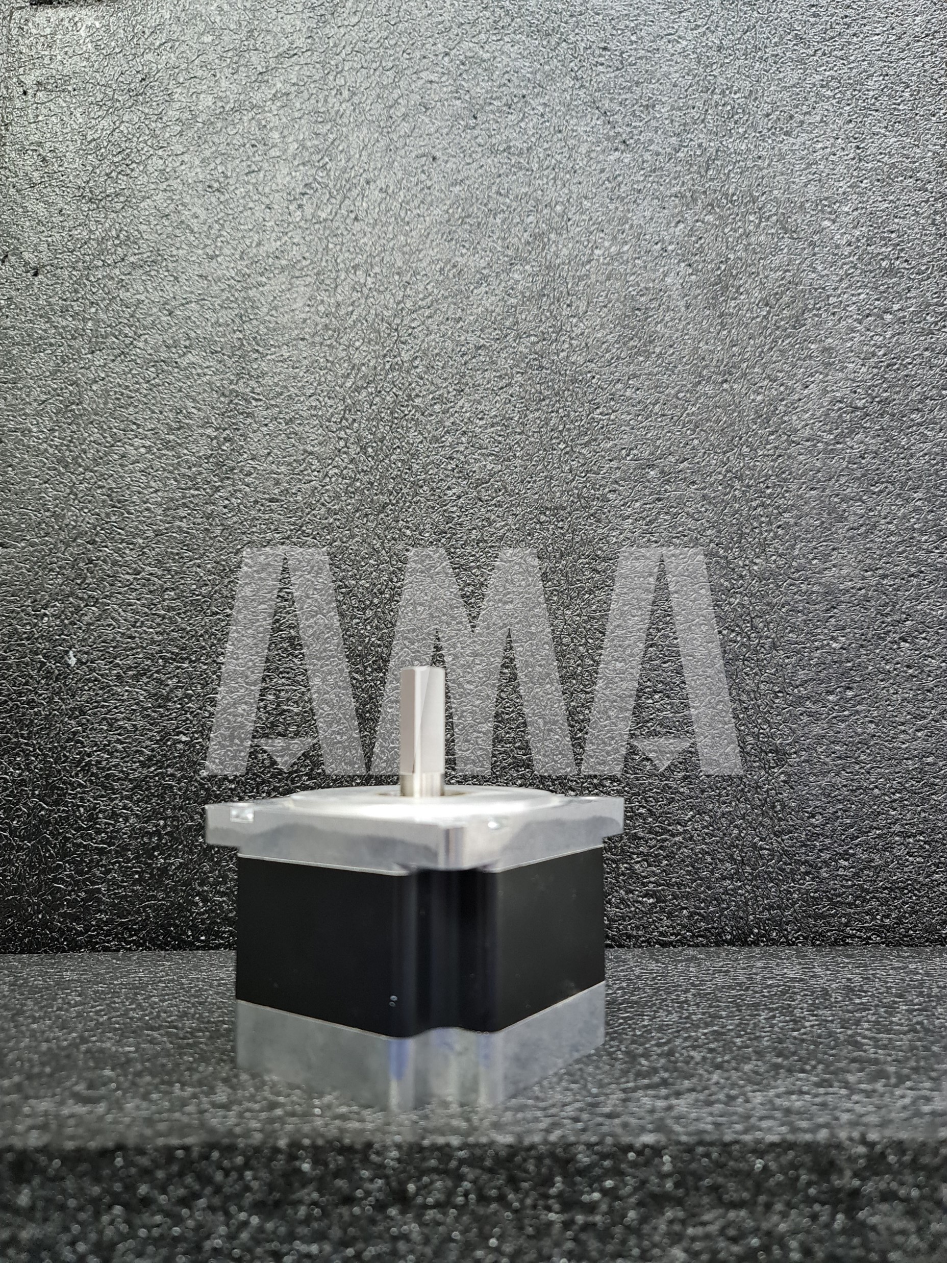

NEMA 34 Hybrid Step Motor

Model Number: 34H118D10B
Single Stack Bipolar Motor

Product Description:
- Frame Size: 34
- Step Angle: 1.8°
- V_rated: 11.90VDC
- I_{rated per phase}: 1.0A
- T_{Holding, min}: 3.25Nm
- T_{Detent, max}: 0.16Nm
- T_Operating: -20 ~ 40ºC
- Weight: 1.80kg

Shaft Load Rating @1500rpm
   - Radial_{Shaft Center}: 29kg
   - Axial_{Both Direction}: 34kg

Insulation Rating: Class B

Standard Stepper Motor: Typical path of flux transfer that will cause some flux leakage in normal operation

Brand
Model Number: 34H118D10B
Application
