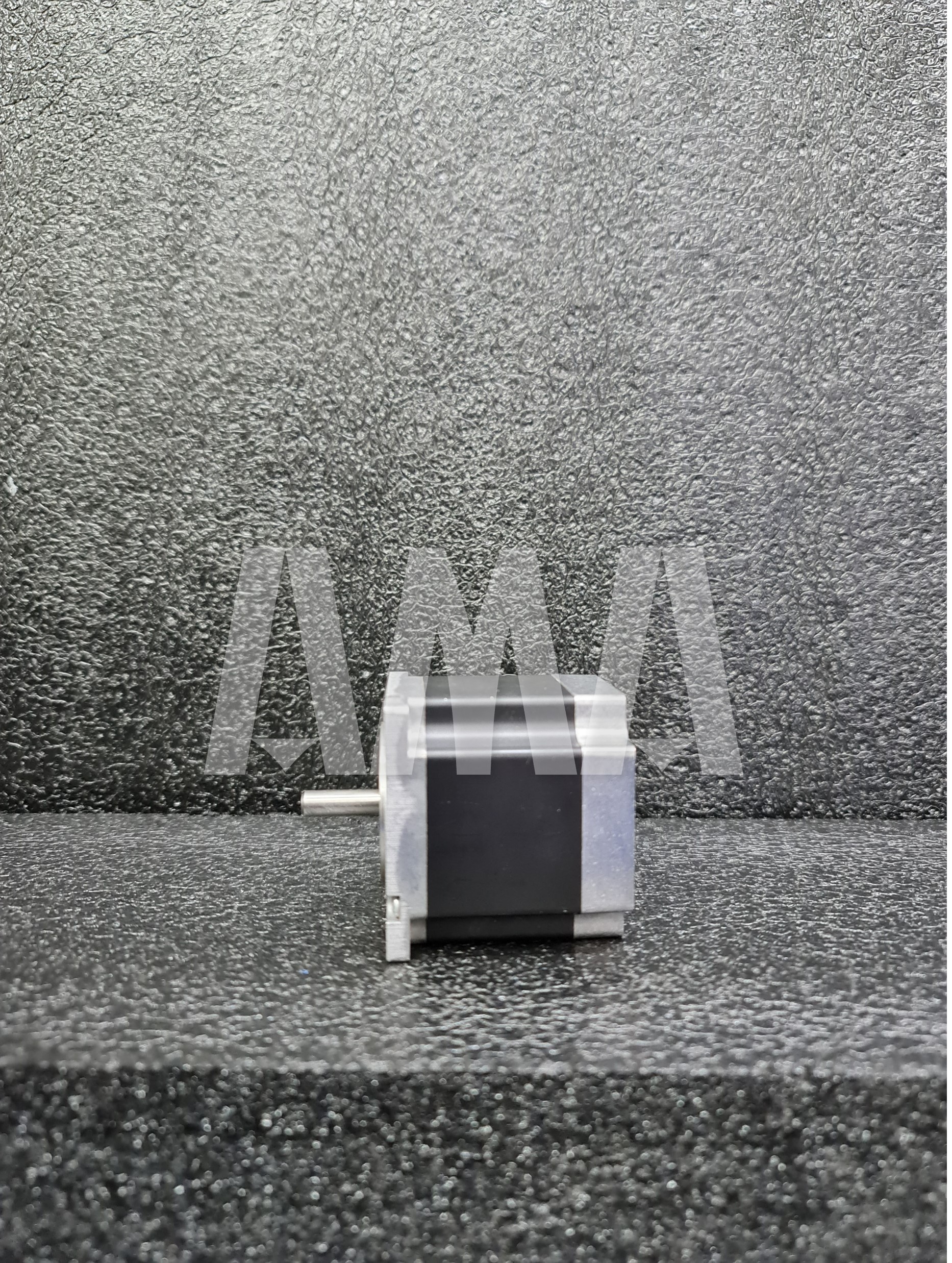

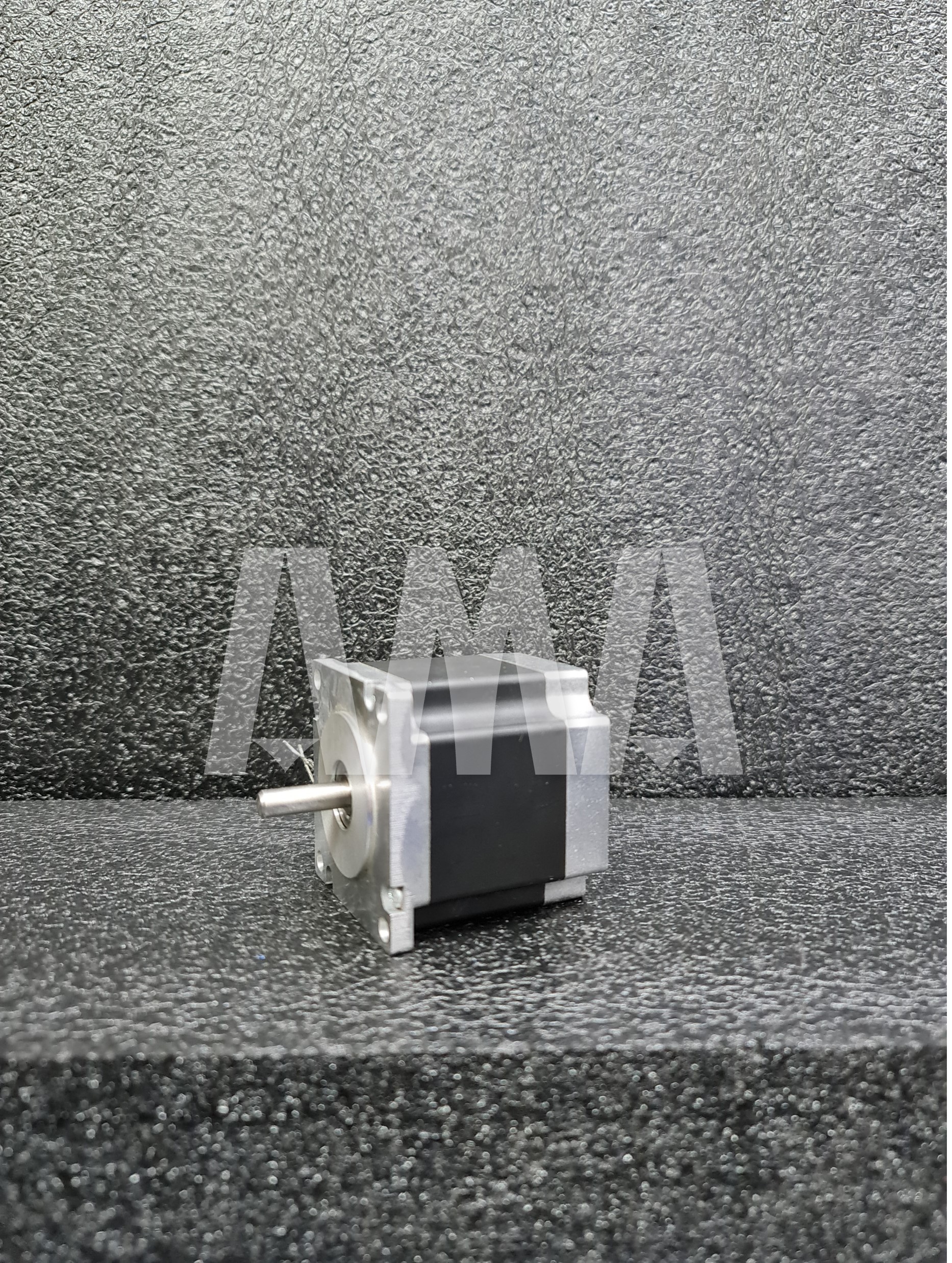

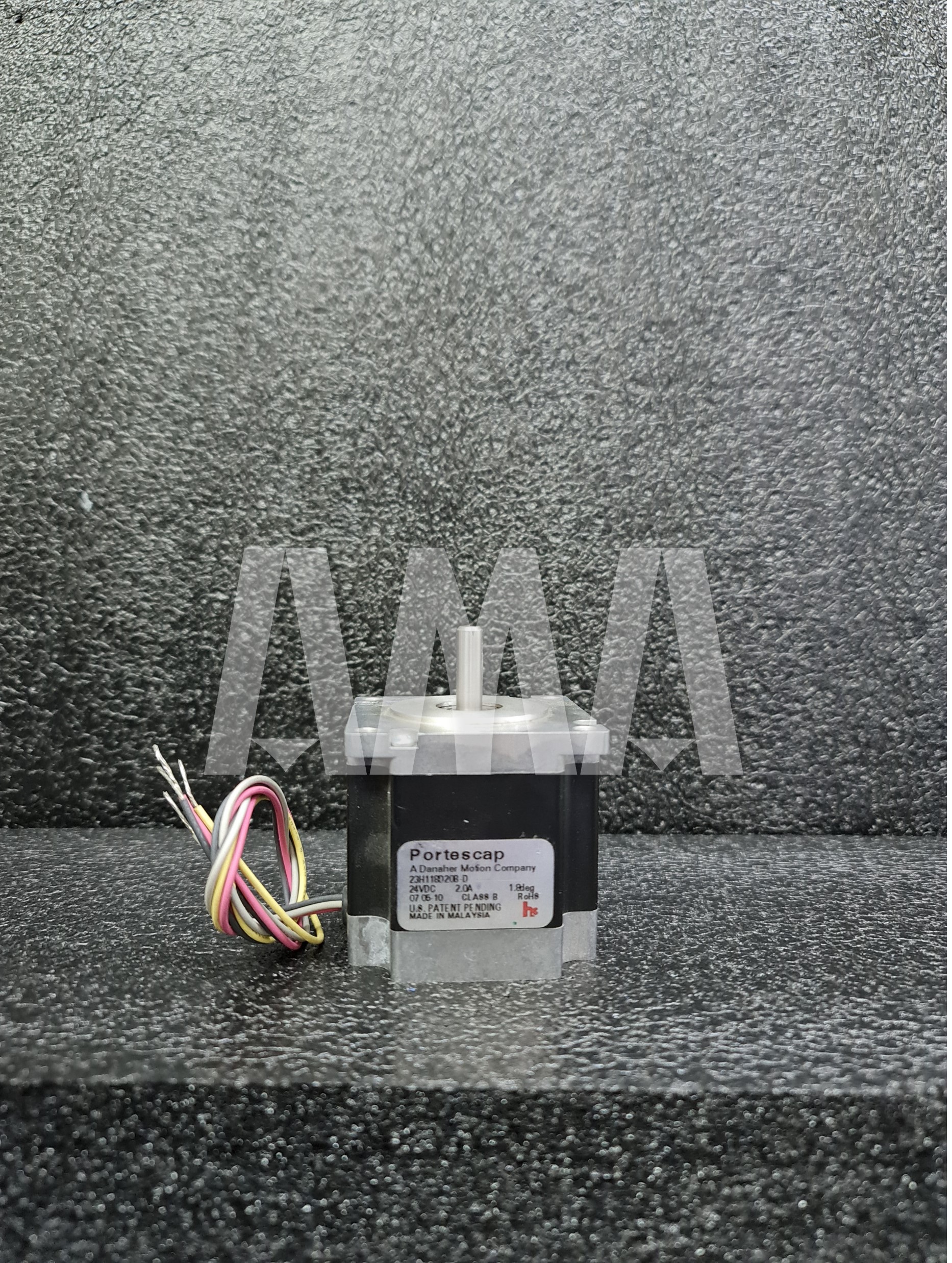

NEMA 23 Hybrid Step Motor

Model Number: 23H118D20B-D
Single Stack Bipolar Motor

Product Description:
- Frame Size: 23
- Step Angle: 1.8°
- V_in: 24VDC
- V_rated: 6.84VDC
- I_{rated per phase}: 2.0A
- T_{Holding, min}: 1.27Nm
- T_{Detent, max}: 0.064Nm
- T_Operating: -20 ~ 40ºC
- Weight: 0.64kg

Shaft Load Rating @1500rpm
   - Radial_{Shaft Center}: 9kg
   - Axial_{Both Direction}: 23kg

Insulation Rating: Class B

Standard Stepper Motor: Typical path of flux transfer that will cause some flux leakage in normal operation
