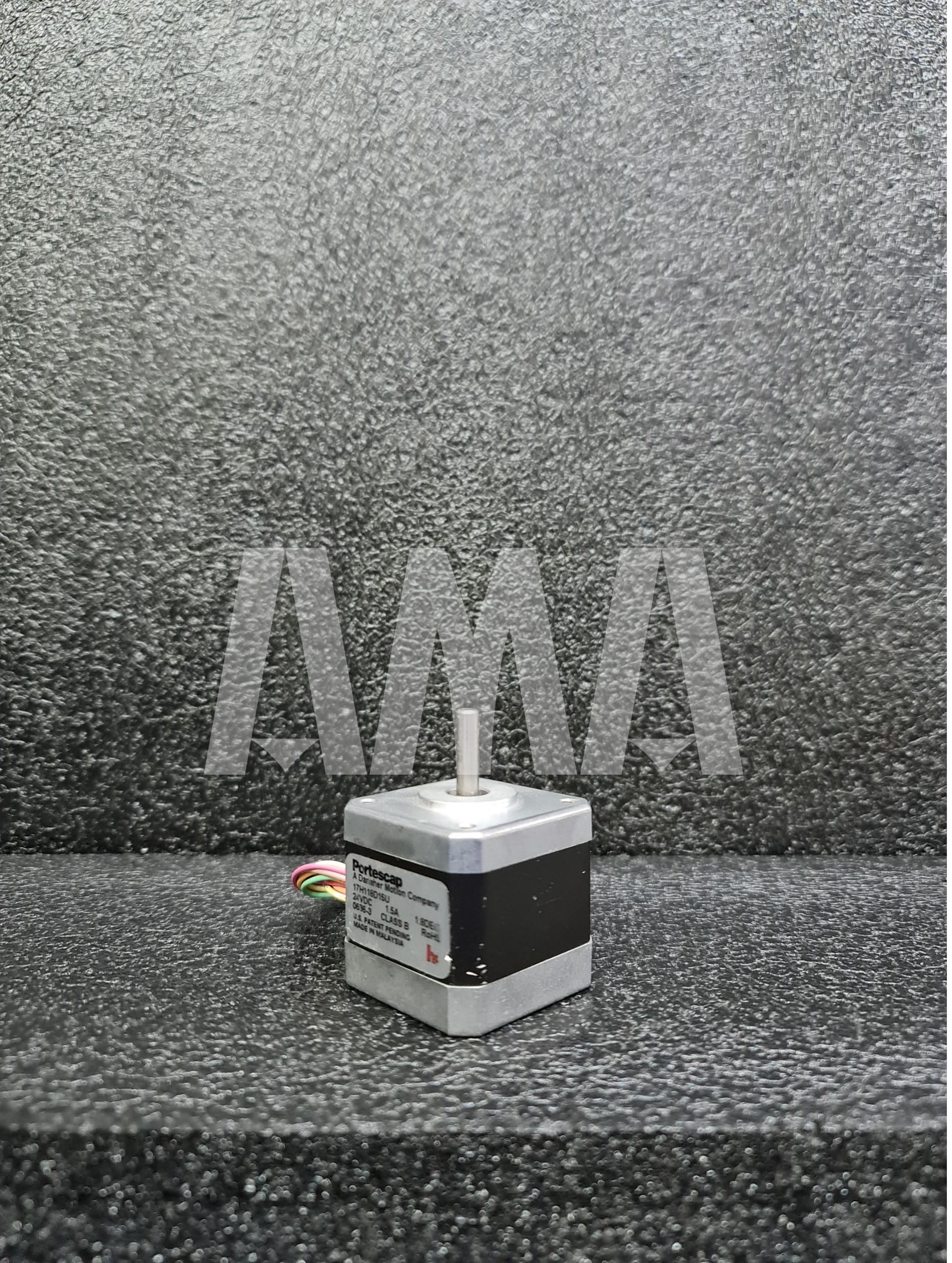

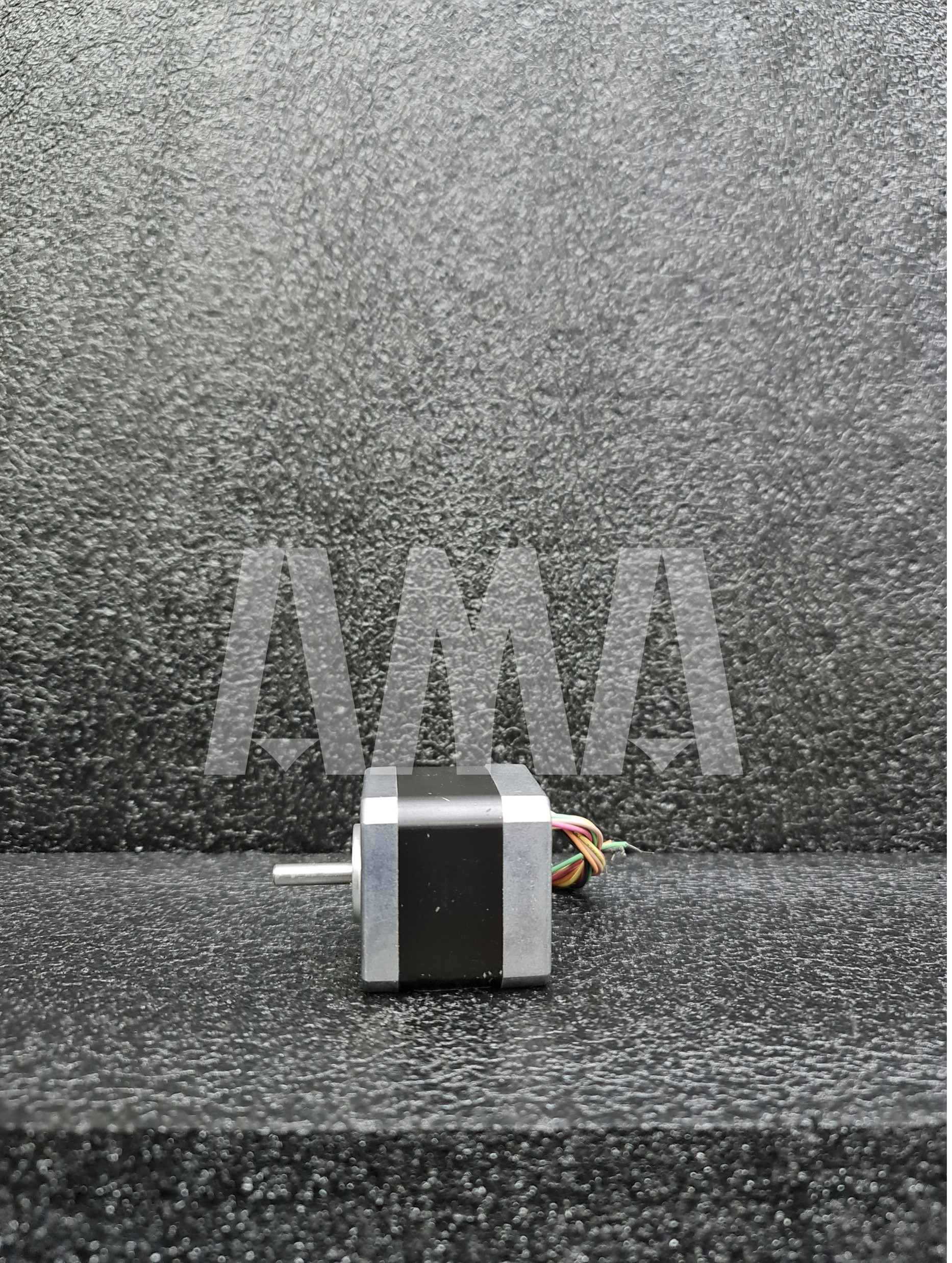

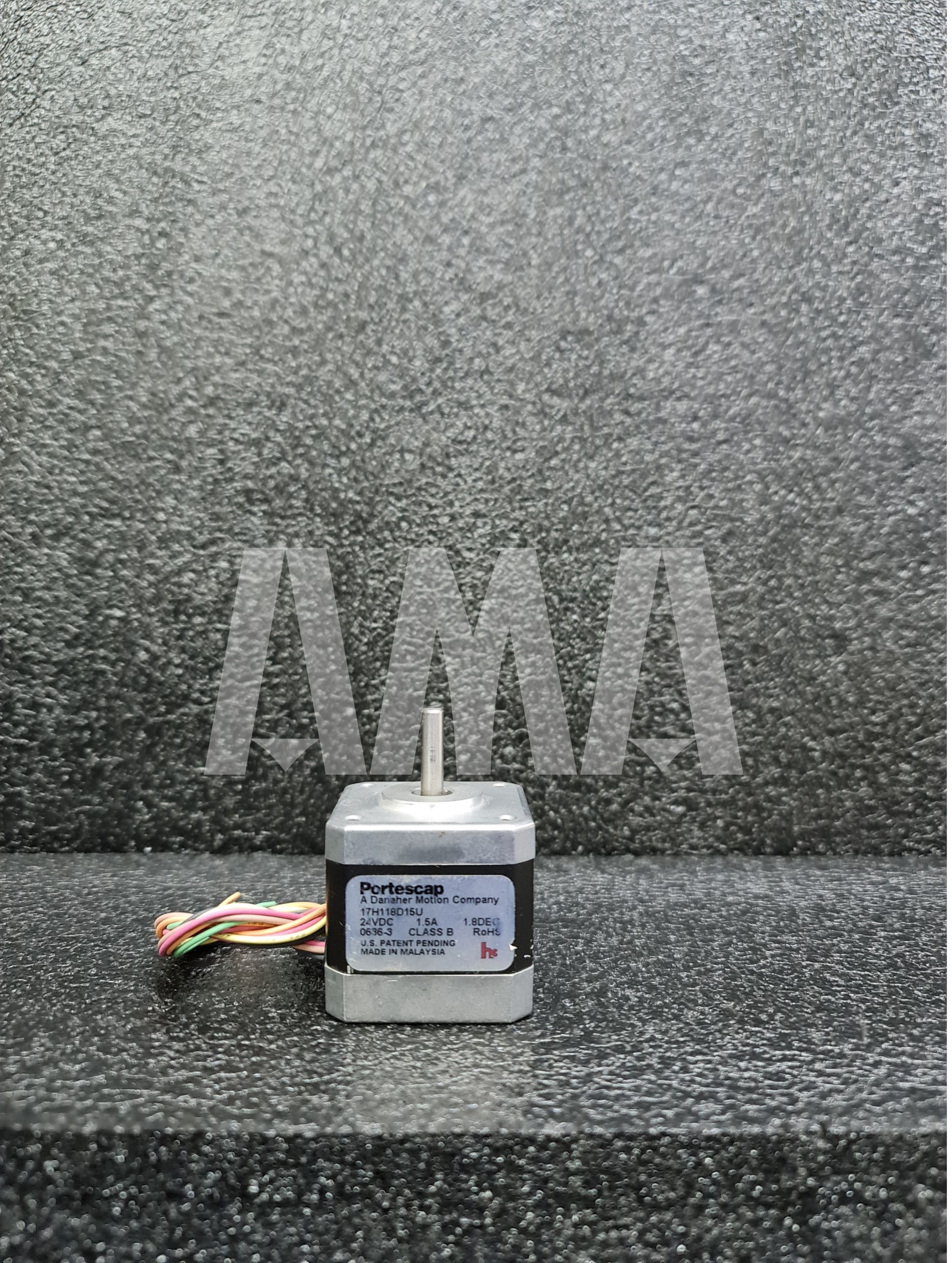

NEMA 17 Hybrid Step Motor

Model Number: 17H118D15U
Single Stack Unipolar Motor

Product Description:
- Frame Size: 17
- Step Angle: 1.8°
- V_in: 24VDC
- I_{rated per phase}: 1.5A
- T_{Holding, min}: 0.27Nm
- T_{Detent, max}: 0.017Nm
- T_Operating: -20 ~ 40ºC
- Weight: 0.26kg

Shaft Load Rating @1500rpm
   - Radial_{Shaft Center}: 6.8kg
   - Axial_Push: 2.7kg
   - Axial_Pull: 6.8kg

Insulation Rating: Class B

Standard Stepper Motor: Typical path of flux transfer that will cause some flux leakage in normal operation

Brand
Model Number: 17H118D15U
Application
